This article covers how to use Google Authenticator on your iPhone or iPad.

Note: Please refer to Google's terms and conditions, and iPayroll's Disclaimer Notice: Use of Third-Party Software or Websites.

First, You Need to Install This App on Your Device

Download the app from the App Store, or tap/select the image below to install the app:

Once the Google Authenticator app is installed on your device, you can then set up two-factor authentication (2FA).

Go to:

• Scan a QR Code
• Manually Enter a Time-Based Key
• Remove an Account

 Scan a QR Code

Use this method if you want to capture the time-based key from the QR code.

1. On your device, open the Google Authenticator app.
2. In Google Authenticator, tap the +.

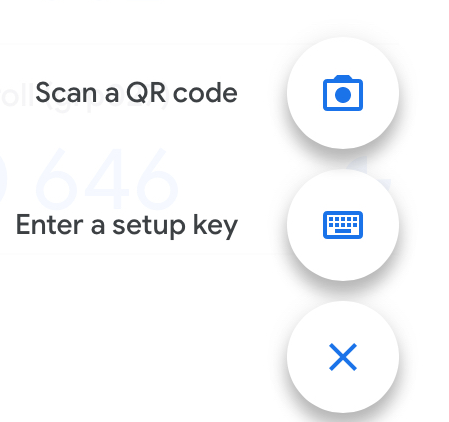

   Google Authenticator displays a menu.

3. Tap Scan a QR code .
4. With your device, scan the QR code.


   Note: If you can't already see the iPayroll Two Factor Authentication page with the QR code, in iPayroll, select your 'Logged in as your username' hyperlink at the top right of the page, next to the Logout, and select the Two Factor Authentication page.

   Google Authenticator adds the account to the app. A 6-digit verification code, which is regenerated every 30 seconds, displays.
5. In iPayroll, on the Two Factor Authentication page, enter the 6-digit verification code in the Verification code field and select Confirm.
   Note: You need to select Confirm before the code regenerates.

Now, each time you log into iPayroll, after you have entered your username and password, you will enter the latest 6-digit code from your authenticator app.

Note: Google Authenticator indicates how many seconds are left before the code expires, showing a countdown clock, as well as changing the code to red to indicate 5 seconds remaining before the code expires. If you don't have time to enter and confirm the code, as there are not many seconds left, wait until the code regenerates and use the latest code.

Hint: Tap the 6-digit code to copy the verification code.

Manually Enter a Time-Based Key

Use this method only if you unable to capture the time-based key from the QR code.

1. On your device, open the Google Authenticator app.
2. In Google Authenticator, tap the +.
   Google Authenticator displays a menu.

3. Tap Enter a setup key.

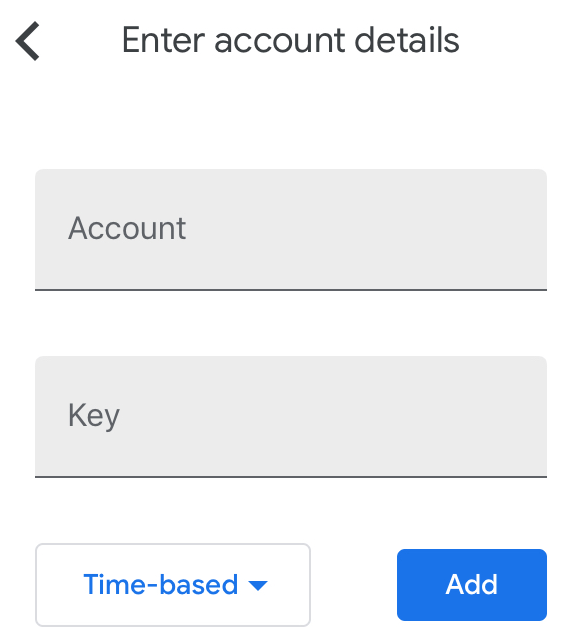

   The 'Enter account details' screen displays.

4. In the Account field, enter your account name (for example, your iPayroll username).
5. In the Key field, enter the 16-character time-based key or paste the time-based key from iPayroll.
   Note: The time-based key is under the QR code in iPayroll. In iPayroll, select I can't scan the QR code to display the time-based key.


   Note: If you can't already see the iPayroll Two Factor Authentication page, in iPayroll, select your 'Logged in as your username' hyperlink at the top right of the page, next to the Logout, and select the Two Factor Authentication page.

6. Make sure Time-based is displayed.
7. Tap Add.
   Google Authenticator adds the account to the app. A 6-digit verification code, which is regenerated every 30 seconds, displays.
8. In iPayroll, on the Two Factor Authentication page, enter the 6-digit verification code in the Verification code field and select Confirm.
   Note: You need to select Confirm before the code regenerates.

Now, each time you log into iPayroll, after you have entered your username and password, you will enter the latest 6-digit code from your authenticator app.

Note: Google Authenticator indicates how many seconds are left before the code expires, showing a countdown clock, as well as changing the code to red to indicate 5 seconds remaining before the code expires. If you don't have time to enter and confirm the code, as there are not many seconds left, wait until the code regenerates and use the latest code.

Hint: Tap the 6-digit code to copy the verification code.

Remove an Account

1. On your device, open the Google Authenticator app.
2. In Google Authenticator, tap the ... icon on the top right of the screen.
3. Tap Edit at the bottom of the screen.
4. Tap the Pencil icon on the right side of the account you want to remove.
   The 'Edit account' screen displays.
5. Tap the Bin icon at the top right of the page.

   The 'Are you sure that you want to remove this account?' prompt appears.
6. Tap Remove account.
   Google Authenticator removes the account.
7. Tap the ✔ to return to the main screen.
